Technical data
TITAN ABS
dimensions (L x W x H) in mm
1,000 x 500 x 2,000
max. weight in kg
127
strap width in mm
12.7 to 19
coil core diameter in mm
410
outer diameter of coil in mm
585
coil width in mm
60 to 70
- up to 11.5 m of strap in the magazine
- pulling force: max. 10 N
- continuous feed
- smooth strapping
- robust TITAN quality

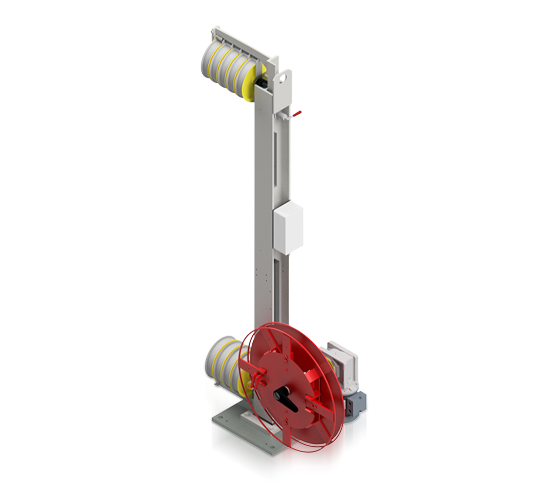

Makes every strapping machine run like a dream: the TITAN ABS steel strap feeding system is your perfect solution for the smooth feeding of steel strapping during machine strapping. With up to 11.5 m of strap in the magazine and an optimally matched pull-off force of max. 10 N, TITAN ABS ensures a continuous strapping process without resistance from the coil weight during pull-off. Let it roll!
If you’re not sure which accessory or which version is best suited to your strapping solution, just ask us!
