Technical data

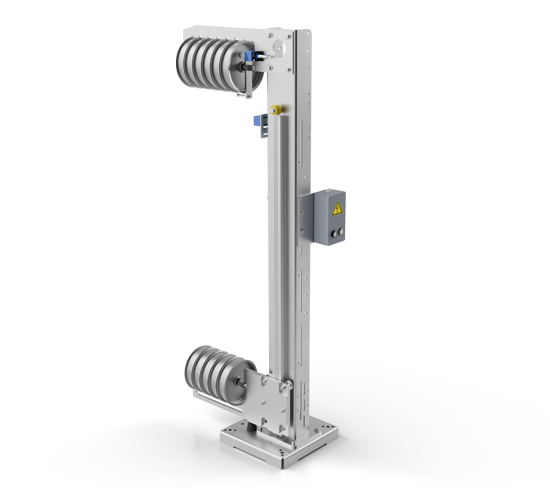

TITAN BS-S
connection data in V
24
dimensions (L x W x H) in mm
950 x 550 x 1,862
max. weight in kg
150
strap width in mm
12.7 to 31.75
strap thickness in mm
0.6 to 1.45
- arm on the right or left
- storage capacity: 11 m
- pulling force: max. 22 N
- braking power: 40 W
- robust TITAN quality
If you’re strapping with steel strap in harsh environments, the TITAN BS-S strap accumulator is just the thing for you: as an extra-robust addition to our steel strap dispensers for machine strapping, it ensures optimal strap feeding with a storage capacity of up to 11 m and a maximum pull-off force of 22 N. And it offers flexibility for steel straps between 12.7 and 31.75 mm in width.
to the ARG 502 steel strapping dispenser
to the ARG 1000 steel strapping dispenser
If you’re not sure which accessory or which version is best suited to your strapping solution, just ask us!
